PerimeterSecurityRadarAXPR200-P-AxEnd

Perimeter Security/

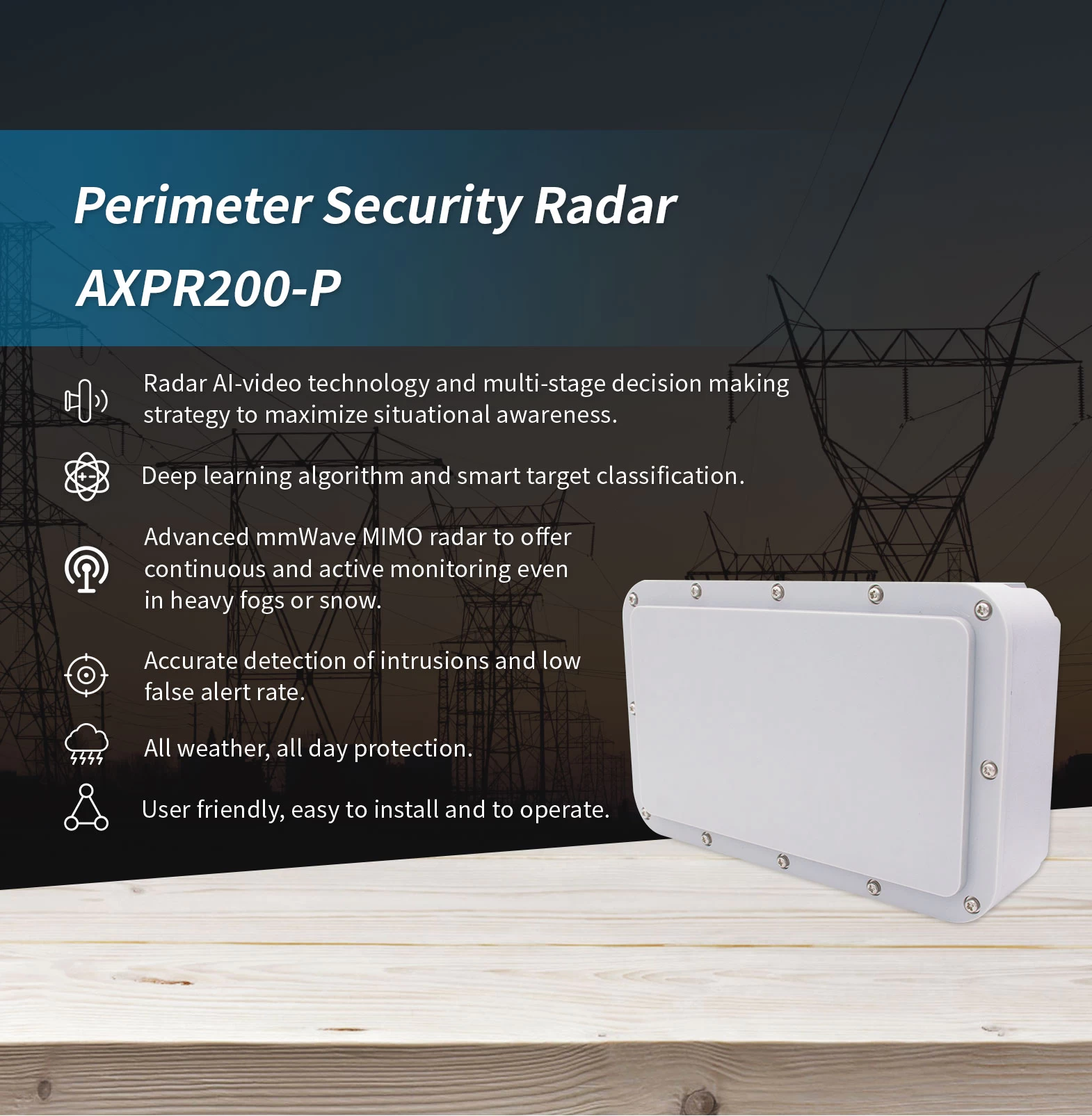

Perimeter Security Radar AXPR200-P

ModelAXPR200-P
Radar TypeFrequency Modulated Continuous Wave (FMCW)
Frequency Band24GHz
Refresh Rate10Hz
Detection Range (Human)up to 350m (1148ft)
Detection Range (Vehicle)up to 500m (1640ft)
Detectable Target Velocity0.05-30m/s (0.16-98.4ft/s)
Effective Field of View (Horizontal)±10°
Effective field of view (Vertical)±6.5°
Simutaneous Tracking32
Distance Accuracy±1m (±3.3ft)
Angle Accuracy±1°
Range Resolution1.5m (4.9ft)
Alarm OutputNO/NC Relay *1;GPIO *1
Operating SystemBuilt-in Linux
Communication InterfaceEthernet & RS485
Power SupplyDC 12V 2A / POE
Power Consumption15W
Operating Temperature-40 ~ 70℃ (-40 ~ 158℉)
Dimension300*130*50mm (11.8*5.1*2in)
Weight1.64kg (3.6lb)
Installation Height1.5 ~ 4m (4.9 ~ 13.1ft)
CertificationCE, FCC
  • Product Details



The perimeter security radar is typically developed for intrusion detection inside or outside the physical fence or wall. By adopting MIMO RF antenna design and FMCW signal processing technology, the radar has the characteristics of high accuracy, resolution and sensitivity. The radar outputs targets with sufficient data as target type, distance, speed, and angle.

Through intelligent AI learning algorithms, radar is able to distinguish human, vehicles, and others, effectively filtering false targets caused by trees and grass. This radar supports customization of included and excluded zones via web interface, and independently works as an intrusion detection sensor to a third party alarm device. It can also output target position to activate the CCTV camera, and be integrated into the security platform.

Compared to other traditional perimeter security technologies, perimeter security radar has much better performance in various adverse weather conditions such as rain, snow, fog, haze, and dust. It can always report any potential intrusion events with minimum false rate.













ModelAXPR200-P
Radar TypeFrequency Modulated Continuous Wave (FMCW)
Frequency Band24GHz
Refresh Rate10Hz
Detection Range (Human)up to 350m (1148ft)
Detection Range (Vehicle)up to 500m (1640ft)
Detectable Target Velocity0.05-30m/s (0.16-98.4ft/s)
Effective Field of View (Horizontal)±10°
Effective field of view (Vertical)±6.5°
Simutaneous Tracking32
Distance Accuracy±1m (±3.3ft)
Angle Accuracy±1°
Range Resolution1.5m (4.9ft)
Alarm OutputNO/NC Relay *1;GPIO *1
Operating SystemBuilt-in Linux
Communication InterfaceEthernet & RS485
Power SupplyDC 12V 2A / POE
Power Consumption15W
Operating Temperature-40 ~ 70℃ (-40 ~ 158℉)
Dimension300*130*50mm (11.8*5.1*2in)
Weight1.64kg (3.6lb)
Installation Height1.5 ~ 4m (4.9 ~ 13.1ft)
CertificationCE, FCC







The perimeter security alarm software is to manage multiple perimeter surveillance terminals, AI-video boxes with security radar and video surveillance cameras, integrated smart algorithm. The perimeter security alarm management platform software is the hub of the whole perimeter security system. When the intruder enters the alarm zone area, the radar sensor delivers the intrusion location through active detection, accurately determines the type of intrusion with AI vision, records video of the intrusion process, and reports to the perimeter security alarm management platform, so active, three- dimensional monitoring and early warning of the perimeter is addressed.





Smart radar AI-video perimeter security system can work with the security system in the market including CCTV and Alarm System. The perimeter surveillance terminals and smart AI boxes supports ONVIF & RTSP, also comes with alarm outputs like relay and I/O. Besides, the SDK/API is available for third party security platform integration.
