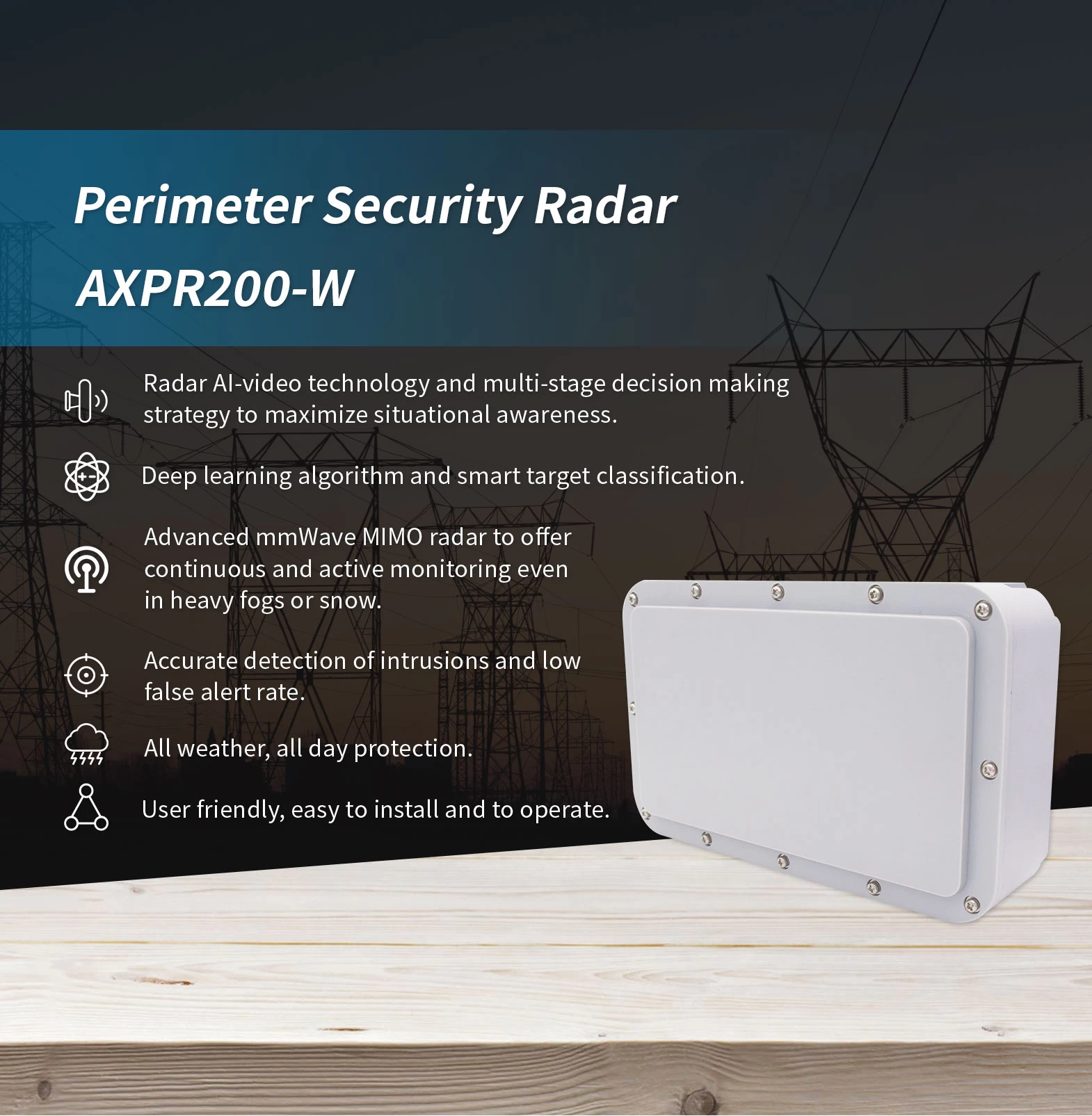

Perimeter Security Radar AXPR200-W

ModelAXPR200-W
Radar TypeFrequency Modulated Continuous Wave (FMCW)
Frequency Band24GHz
Refresh Rate10Hz

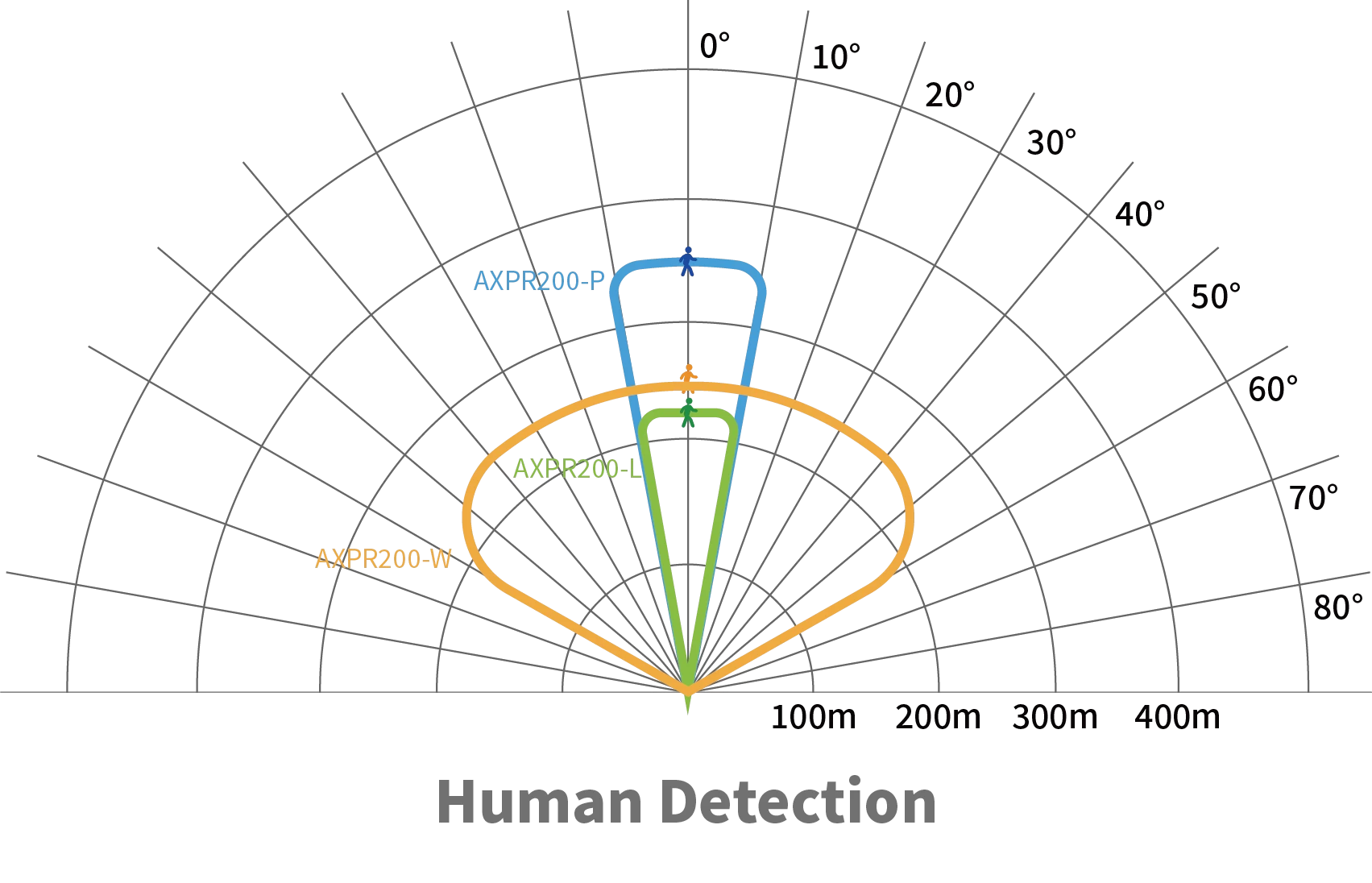

Detection Range (Human)up to 250m (820ft)

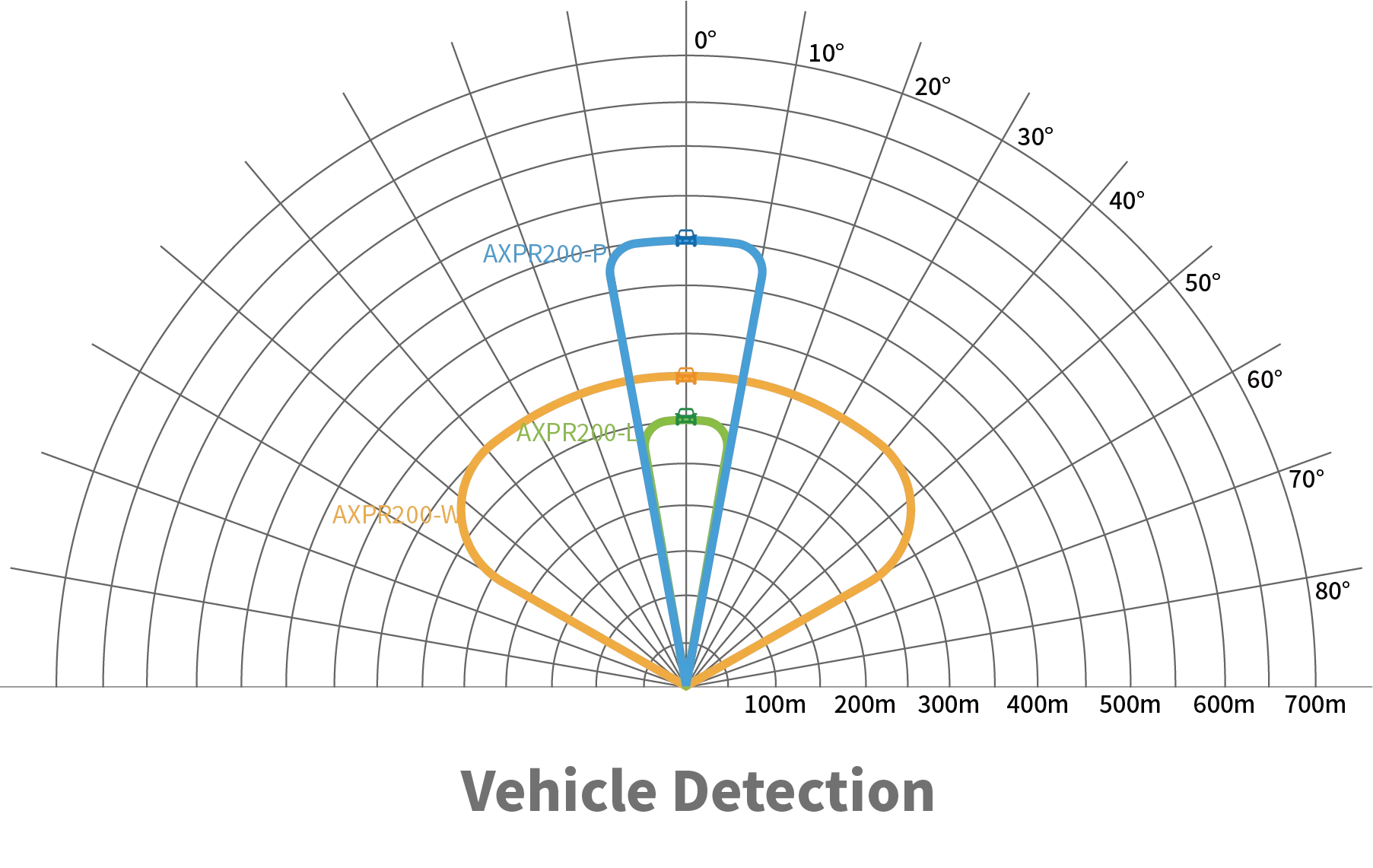

Detection Range (Vehicle)up to 350m (1148ft)
Detectable Target Velocity0.05-30m/s (0.16-98.4ft/s)
Effective Field of View (Horizontal)±60°
Effective field of view (Vertical)±10°
Simutaneous Tracking32
Distance Accuracy±1m (±3.3ft)
Angle Accuracy±1°
Range Resolution1.5m (4.9ft)
Alarm OutputNO/NC Relay *1;GPIO *1
Operating SystemBuilt-in Linux
Communication InterfaceEthernet & RS485
Power SupplyDC 12V 2A / POE
Power Consumption15W
Operating Temperature-40 ~ 70℃ (-40 ~ 158℉)
Dimension300*130*50mm (11.8*5.1*2in)
Weight1.64kg (3.6lb)
Installation Height1.5 ~ 4m (4.9 ~ 13.1ft)
CertificationCE, FCC
  • Product Details



The ground surveillance radar is designed to monitor a large area for intrusion prevention. The radar has a field of view up to 120 degrees horizontally and 20 degrees vertically. The detection range for human is more than 250m and for vehicles is more than 350m. The radar is featured with high detection sensitivity and outputs distance,angle, speed and target type etc.

AI algorithm is built inside the radar to learn the background.With target classification like human, vehicle and others, the radar can effectively lower the false detection to the scenario. On the radar WEB configuration, multiple included alarm zones and excluded blind zones can be set up. The radar can be used as an intrusion detector to alarm system, also can be integrated to activate camera system.

Comparing to the traditional perimeter intrusion detection technologies, the radar is highly reliable in working at challenging weather like rain, snow, fog and even at dark night.It works 24*7 on the clock to protect against the intrusion with low false rate. At present, the radar technology is well recognized and applied to perimeter protection at airport, harbor, solar farms, boarder and so on.















ModelAXPR200-W
Radar TypeFrequency Modulated Continuous Wave (FMCW)
Frequency Band24GHz
Refresh Rate10Hz
Detection Range (Human)up to 250m (820ft)
Detection Range (Vehicle)up to 350m (1148ft)
Detectable Target Velocity0.05-30m/s (0.16-98.4ft/s)
Effective Field of View (Horizontal)±60°
Effective field of view (Vertical)±10°
Simutaneous Tracking32
Distance Accuracy±1m (±3.3ft)
Angle Accuracy±1°
Range Resolution1.5m (4.9ft)
Alarm OutputNO/NC Relay *1;GPIO *1
Operating SystemBuilt-in Linux
Communication InterfaceEthernet & RS485
Power SupplyDC 12V 2A / POE
Power Consumption15W
Operating Temperature-40 ~ 70℃ (-40 ~ 158℉)
Dimension300*130*50mm (11.8*5.1*2in)
Weight1.64kg (3.6lb)
Installation Height1.5 ~ 4m (4.9 ~ 13.1ft)
CertificationCE, FCC







The perimeter security alarm software is to manage multiple perimeter surveillance terminals, AI-video boxes with security radar and video surveillance cameras, integrated smart algorithm. The perimeter security alarm management platform software is the hub of the whole perimeter security system. When the intruder enters the alarm zone area, the radar sensor delivers the intrusion location through active detection, accurately determines the type of intrusion with AI vision, records video of the intrusion process, and reports to the perimeter security alarm management platform, so active, three- dimensional monitoring and early warning of the perimeter is addressed.





Smart radar AI-video perimeter security system can work with the security system in the market including CCTV and Alarm System. The perimeter surveillance terminals and smart AI boxes supports ONVIF & RTSP, also comes with alarm outputs like relay and I/O. Besides, the SDK/API is available for third party security platform integration.
