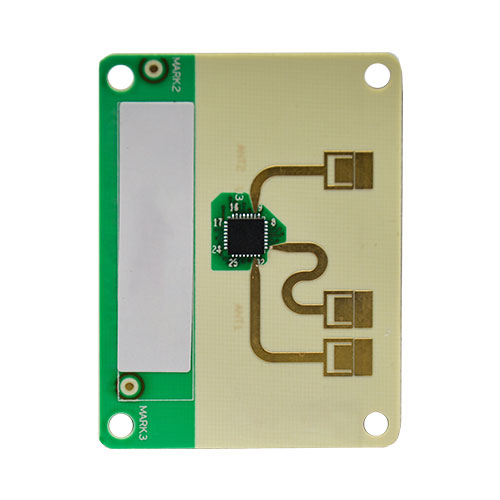

Human Vital Signs Sensing Radar Module ASW02

Model:ASW02

Functions:Breath, Heart-beat, Presence Detection,
 Motion & Motionless, Sitting-up

Modulation Mode:FMCW

Transmit Frequency:24GHz

Transceiver Channel:1TX/ 2RX

Powered by:3.3V DC / 1A Max

Detection Distance:1.5m (4.9ft)

Beamwidth (azimuth):-40°~20°

Beamwidth (pitch):-42°~42°

Communication interface:UART

Power Consumption:0.75W

Dimensions (L*W):48.3*33mm (1.9*1.3in)

Module Weight:7.6g

  • Product Details

Axend’s ASW02, ASW05 and ASA07 series are mmWave radar sensors that are ideal for applications such as fall detection, heart rate and respiratory rate detection as well as sleep monitoring. Featured by designs of FMCW modulation with high complexity and performance, along with advanced radar algorithm accompanied by deep machine learning, this line of radar modules provides excel user experiences with great AOP.



FunctionsBreath, Heart-beat, Presence Detection, Motion & Motionless, Sitting-up
Modulation ModeFMCW
Transmit Frequency24GHz
Transceiver Channel1TX/ 2RX
Powered by3.3V DC / 1A Max
Detection Distance1.5m (4.9ft)
Beamwidth (azimuth)-40°~20°
Beamwidth (pitch)-42°~42°
Communication interfaceUART
Power Consumption0.75W
Dimensions (L*W)48.3*33mm (1.9*1.3in)
Module Weight7.6g
