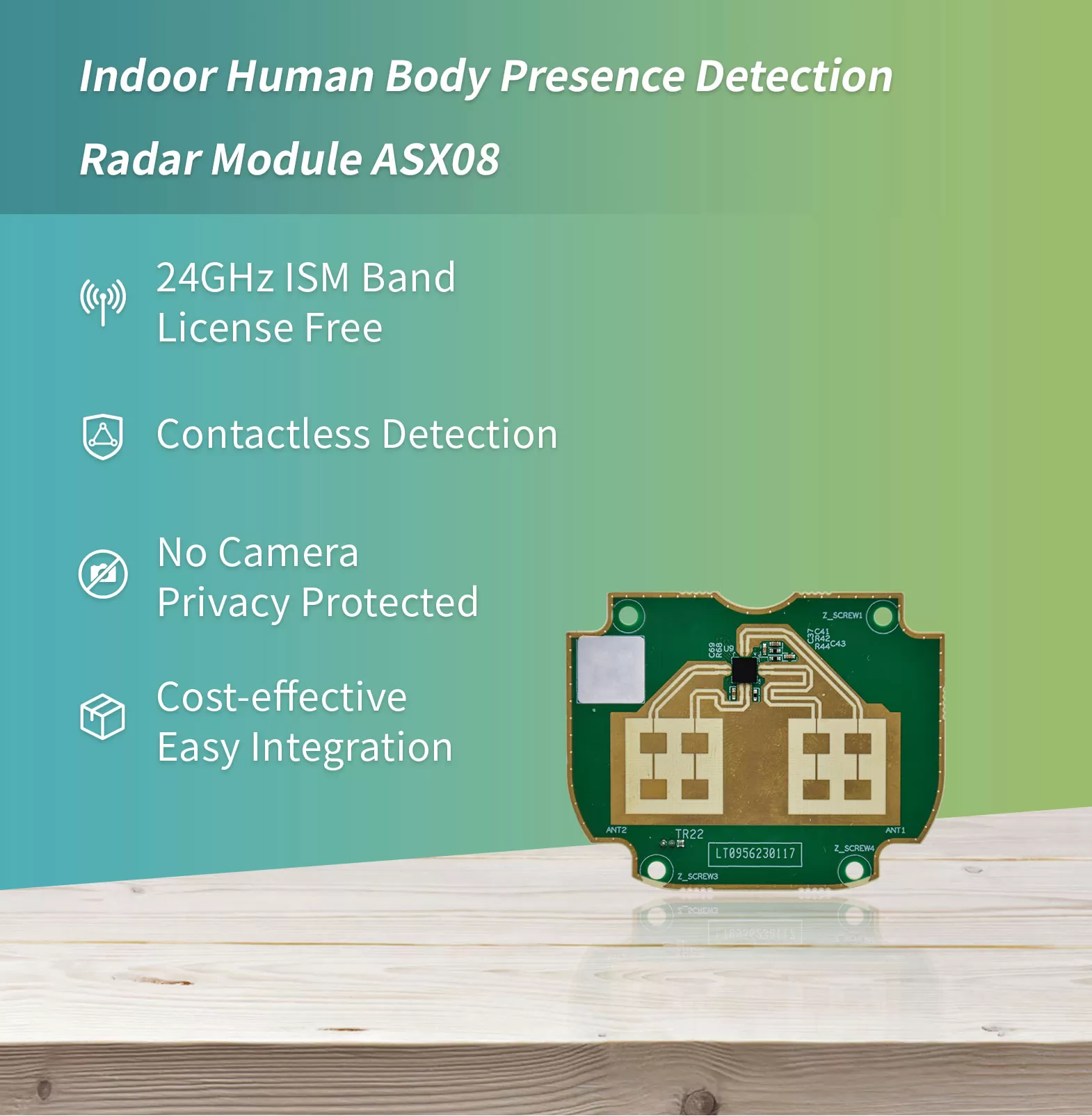

Indoor Human Body Presence Detection Radar Module ASX08


Functions:Presence Detection, Motion & Motionless,
 Target Position & Trajectory

Modulation Mode:FMCW

Transmit Frequency:24GHz

Transceiver Channel:2TX/ 2RX

Powered by:DC 5V/ 1A

Detection Distance:3.0m (10ft) (target motionless)
 6m (19.7ft) (minor movement)
 7m (23ft) (tracking)

Beamwidth (azimuth):-50°~50°

Beamwidth (pitch):-30°~30°

Communication interface:UART

Power Consumption:1W

Dimensions (L*W):58*46mm (2.3*1.8in)

Module Weight:8.5g

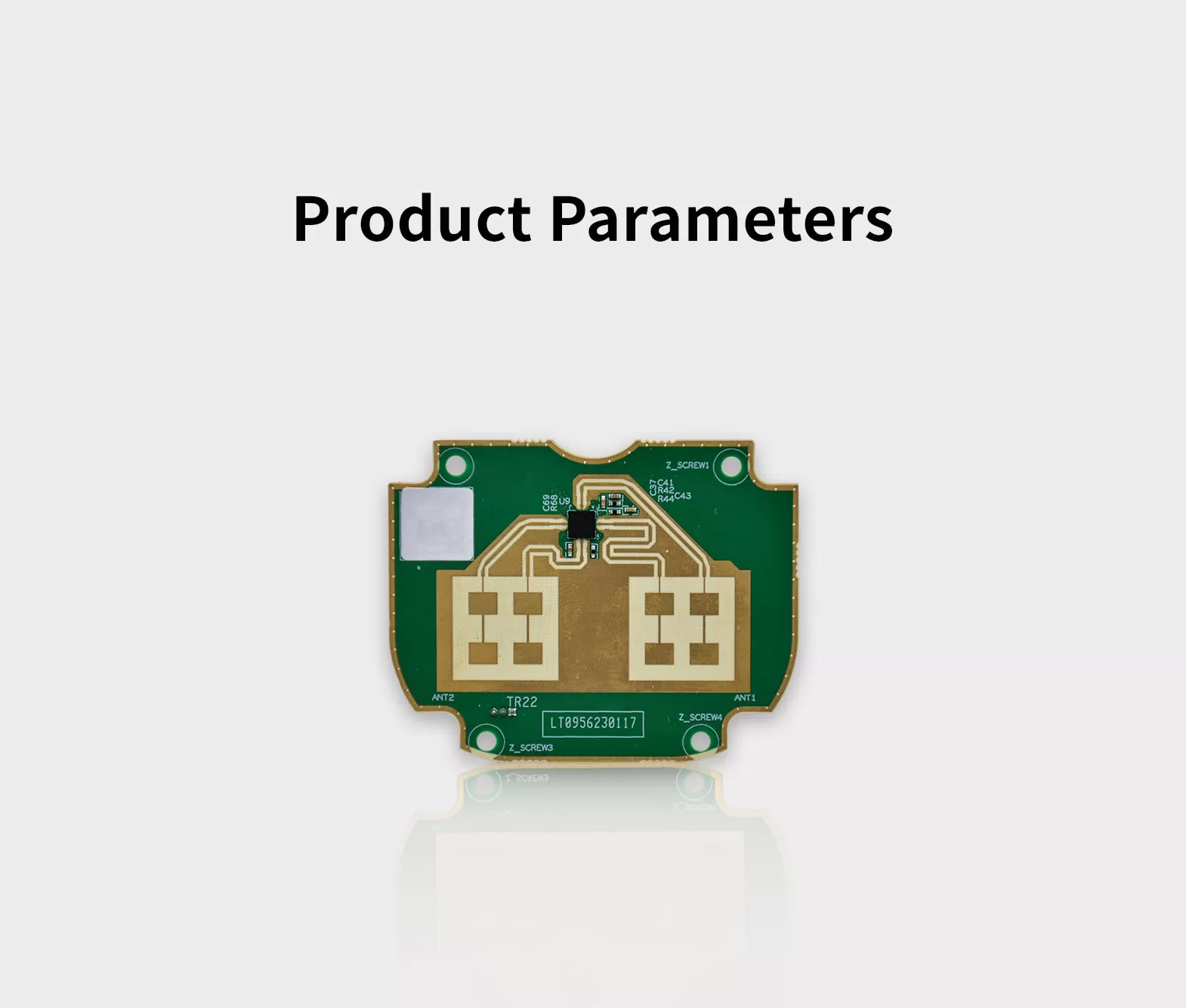

  • Product Details


Axend’s ASX02, ASX08 and ASX10 series are mmWave radar modules that are ideal for applications such as indoor human body presence detection and tracking. Featured by designs of FMCW modulation with high complexity and performance, along with advanced radar algorithm accompanied by deep machine learning, this line of radar modules provides excel user experiences in applications such as smart toilets, smart lighting, smart screen control, and so on. It provides a budget replacement of current technologies such as PIR and doppler radars.


FunctionsPresence Detection, Motion & Motionless, Target Position & Trajectory
Modulation ModeFMCW
Transmit Frequency24GHz
Transceiver Channel2TX/ 2RX
Powered byDC 5V/ 1A
Detection Distance3.0m (10ft) (target motionless)

6.0m (19.7ft) (minor movement)

7m (23ft) (tracking)

Beamwidth (azimuth)-50°~50°
Beamwidth (pitch)-30°~30°
Communication interfaceUART
Power Consumption1W
Dimensions (L*W)58*46mm (2.3*1.8in)
Module Weight8.5g
