MMWAVE RADAR MODULES FOR SMART SECURITY

MMWAVE RADAR MODULES FOR SMART SECURITY

Our series of 24GHz and 60GHz mmWave radar modules are designed for presence detection and tracking with no cameras to intrude on privacy, both indoors and outdoors. By adopting FMCW millimeter-wave radar technology and advanced algorithms, these compactly designed sensors behave excellently in smart security applications such as locks, cameras, motion sensors, and so on. When integrated into other electronic devices, it provides extra capabilities that cannot be achieved by any other current technologies. For the developers, these radar sensors can generate precise and sensitive motion information as well as performance data calculated using machine learning which in turn guarantees for higher system stability as well as much better user experience.

Send Inquiry
  • Product Details

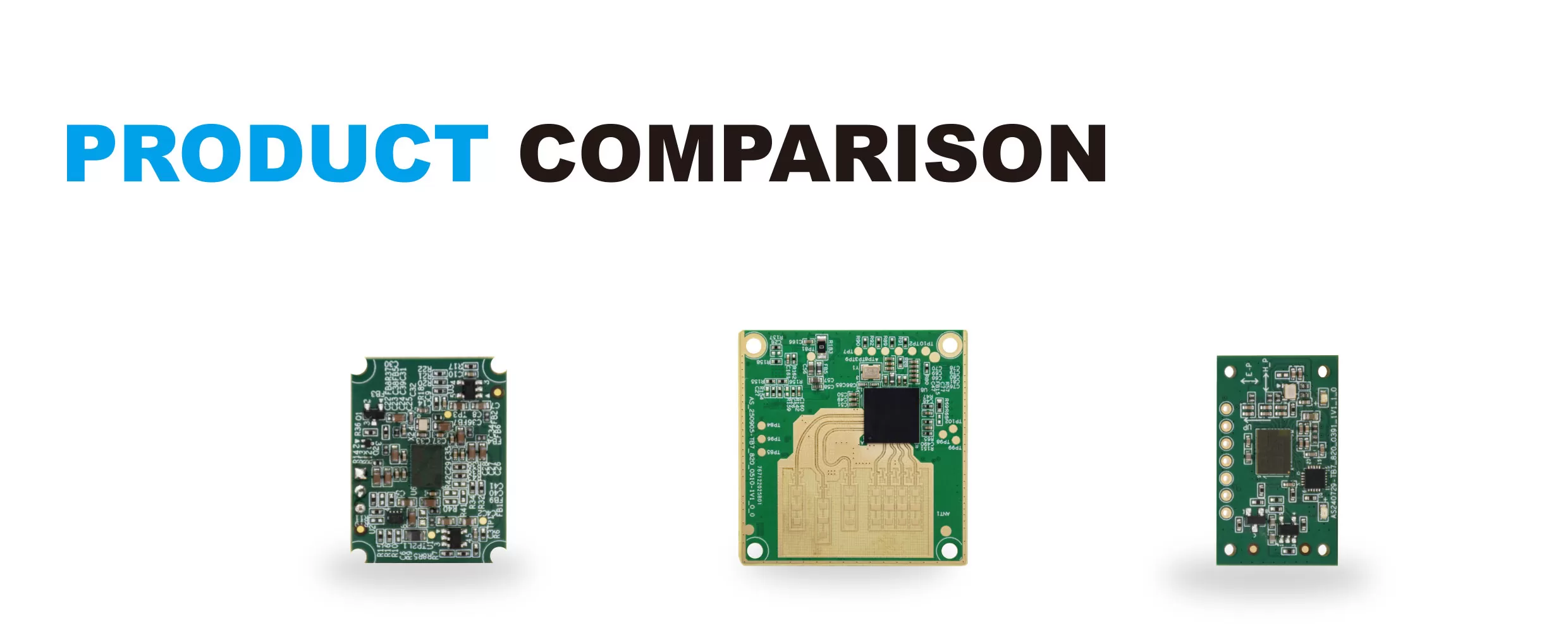

ModelAM60MPL1AM60LOD1-MSASX01/SW
FunctionsUltra-low power consumption.
Wakeup from beyond 10m.
Adjustable wakeup zone and filter zone to better fit your application.		Flat antenna designed for detection within narrow space.
Sensitive to small animals Adjustable alarm zones.		Occupancy detection such as entrance/ exit detection. Adjustable alarm zones. Can detect walkers as well as vehicles.
Ultra – low power consumptionYes––
Modulation modeFMCW
Transmit frequency60GHz
Radar channels1TX / 3RX3TX / 4RX1TX / 3RX
Detection range6.0 (m) / 19.69 (ft)3.0 (m) / 9.84 (ft) (target motionless)

6.0 (m) / 19.69 (ft) (tracking)

Up to 2.1 (m) / 6.89 (ft) ( customizable design)
FOV (horizontal)-60°~60°-60°~60°-50°~50°
FOV (vertical)-60°~60°-15°~15°-50°~50°
Communication interfaceUARTUART / CANNPN/UART
Powered byDC 3.3V / 0.2ADC 5V / 0.5ADC 5V~24V
Power consumption≤0.3mW1.35W0.25W
Dimensions (L*W)30*22 (mm) / 1.2*0.9 (in)43.5*45 (mm) / 1.7*1.8 (in)31.2*18.1 (mm) / 1.2*0.7 (in)
