AxEnd

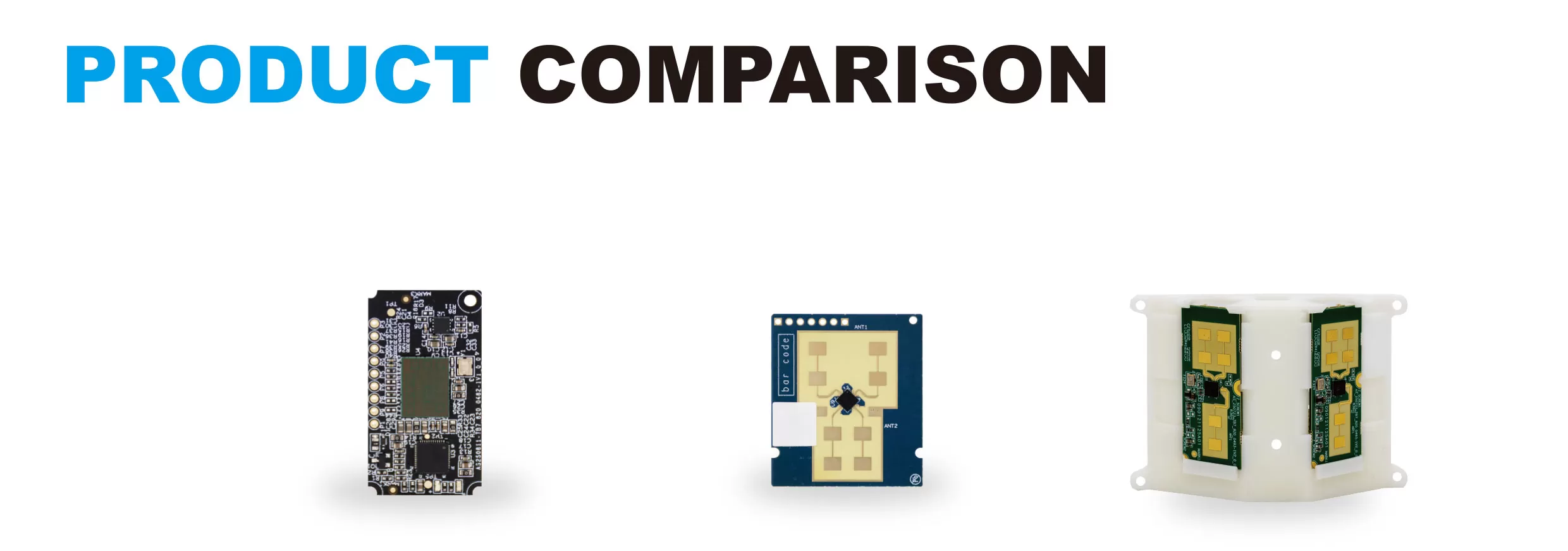

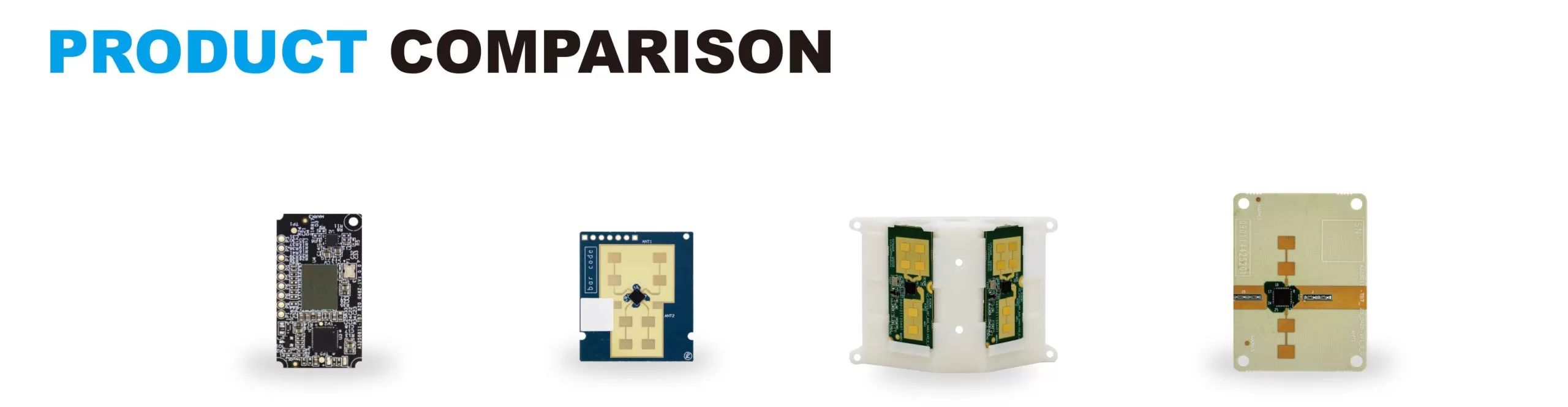

| Model | AM60MP1 | AM24MP-A | AM24MP2-M | AM24MV |
| Functions | Presence detection and tacking even during sleep. FOV of 120°. Adjustable coverage between 0.5m2 to 6m*8m. Simultaneously tracking of up to 6 targets. | Presence detection and tacking even during sleep. Adjustable coverage between 0.5㎡ to 6m*7m. FOV of 110°. Simultaneously tracking of up to 5 targets. | Presence detection and tacking even during sleep. FOV up to 170° Full coverage within a radius of 7m without blind spots. 。 Simultaneously tracking of up to 4 targets. | Real-time HR/BR monitoring. Presence detection. Bed-exit detection. |
| Modulation mode | FMCW | |||
| Transmit frequency | 60GHz | 24GHz | 24GHz | 24GHz |
| Radar channels | 4TX / 4RX | 2TX / 2RX | 1TX / 2RX *2 | 1TX / 1RX |
| Detection range | 8.0 (m) / 26.25 (ft) | 3.0 (m) / 9.84 (ft) (stationary) 6.0 (m) / 19.69 (ft) (minor movement) | 4.0 (m) / 13.12 (ft) (stationary) 5.0 (m) /16.4 (ft) (minor movement) | 1.5 (m) / 4.92 (ft) |
| FOV (horizontal) | -60°~60° | -55°~55° | -85°~85° | -60°~60° |
| FOV (vertical) | -60°~60° | -30°~30° | -30°~30° | -30°~30° |
| Communication interface | UART | |||
| Powered by | DC 5V / 0.5A | DC 5V / 1A Max | ||
| Power consumption | ≤0.15W | 0.95W | 1.1W | 0.25W |
| Dimensions (L*W) | 40.6*22 (mm) / 1.6 *0.9 (in) | 35*40 (mm) / 1.4*1.6 (in) | 66*55 (mm) / 2.6*2.2 (in) | 44*33 (mm) / 1.73*1.3 (in) |
