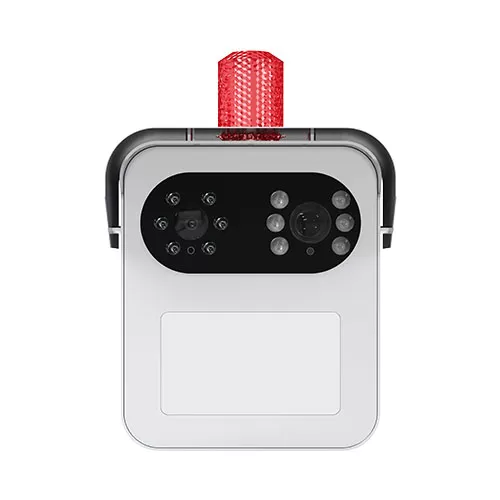

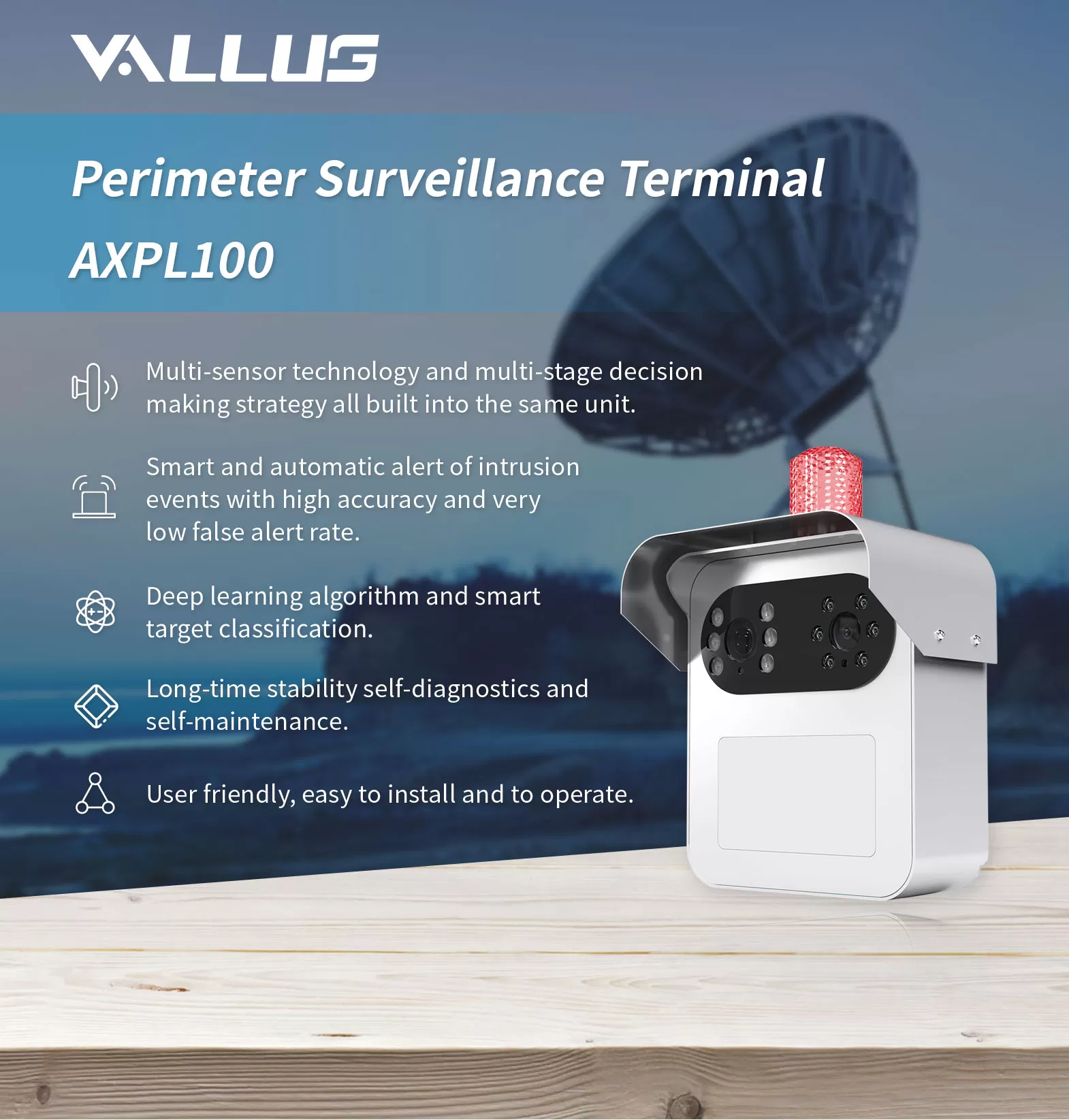

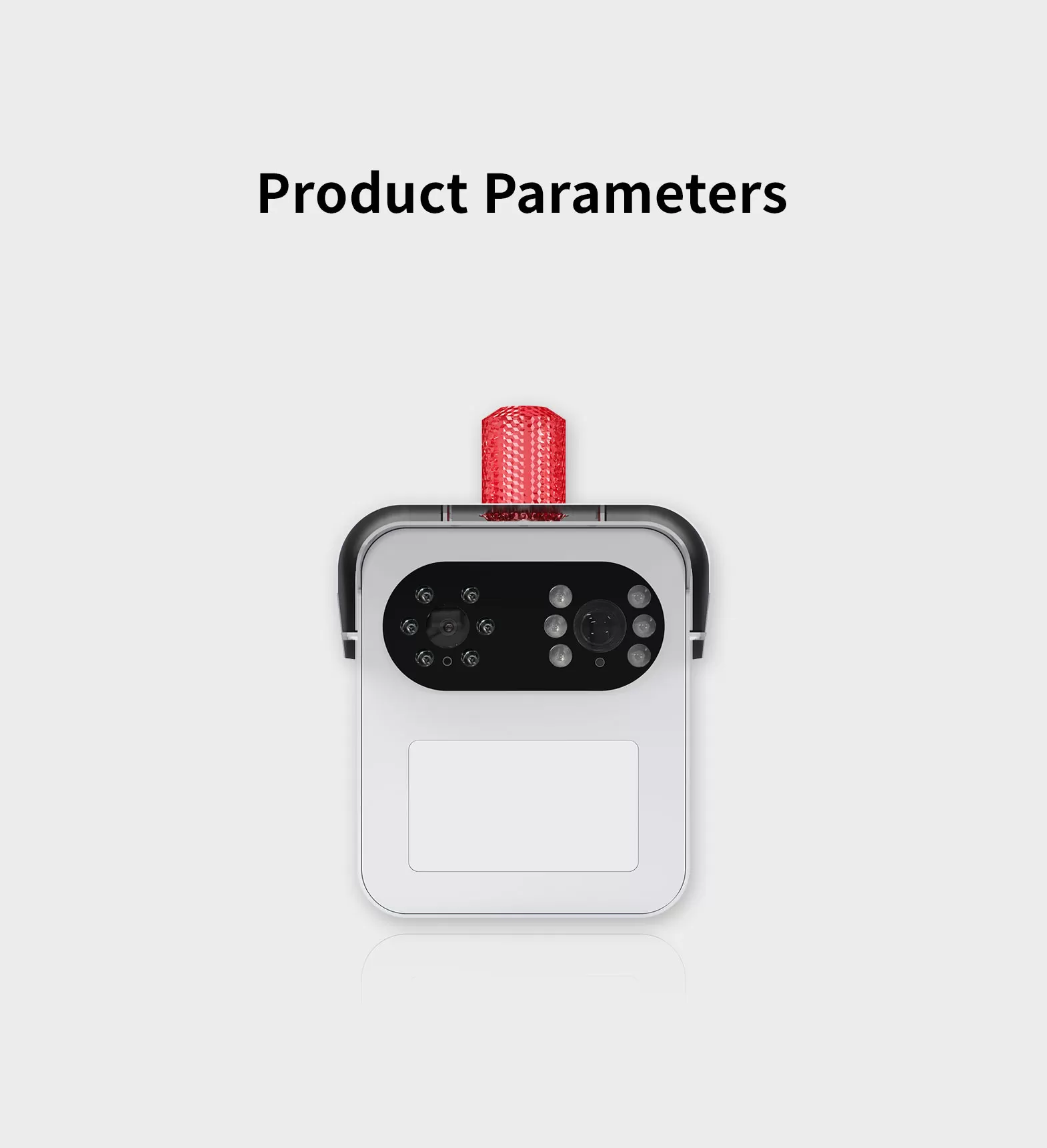

Perimeter Surveillance Terminal AXPL100

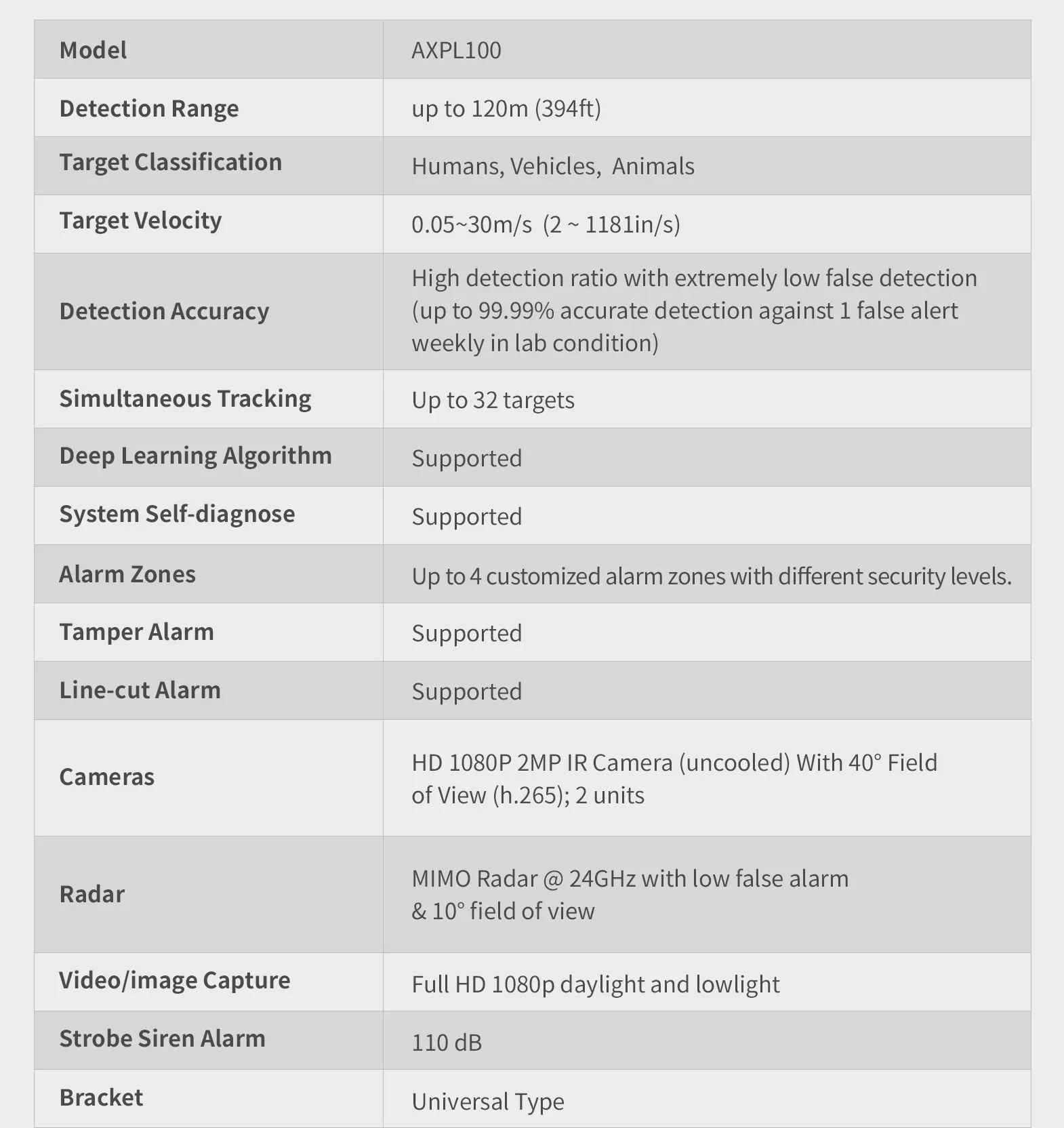

Model:AXPL100

Detection Range:up to 120m (394ft)

Target Classification:Humans, Vehicles, Animals

Target Velocity:0.05~30m/s (2 ~ 1181in/s)

Detection Accuracy:High detection ratio with extremely low false detection
 (up to 99.99% accurate detection against 1 false alert
 monthly in lab condition)

Simultaneous Tracking:Up to 32 targets

Deep Learning Algorithm:Supported

System Self-diagnose:Supported

Alarm Zones:Up to 4 customized alarm zones with different security levels.

Tamper Alarm:Supported

Line-cut Alarm:Supported

Cameras:HD 1080P 2MP IR Camera (uncooled) With 40° Field
 of View (h.265); 2 units

Radar:MIMO Radar @ 24GHz with low false alarm
 & 10° field of view

Video/image Capture:Full HD 1080p daylight and lowlight

Strobe Siren Alarm:110 dB

Bracket:Universal Type

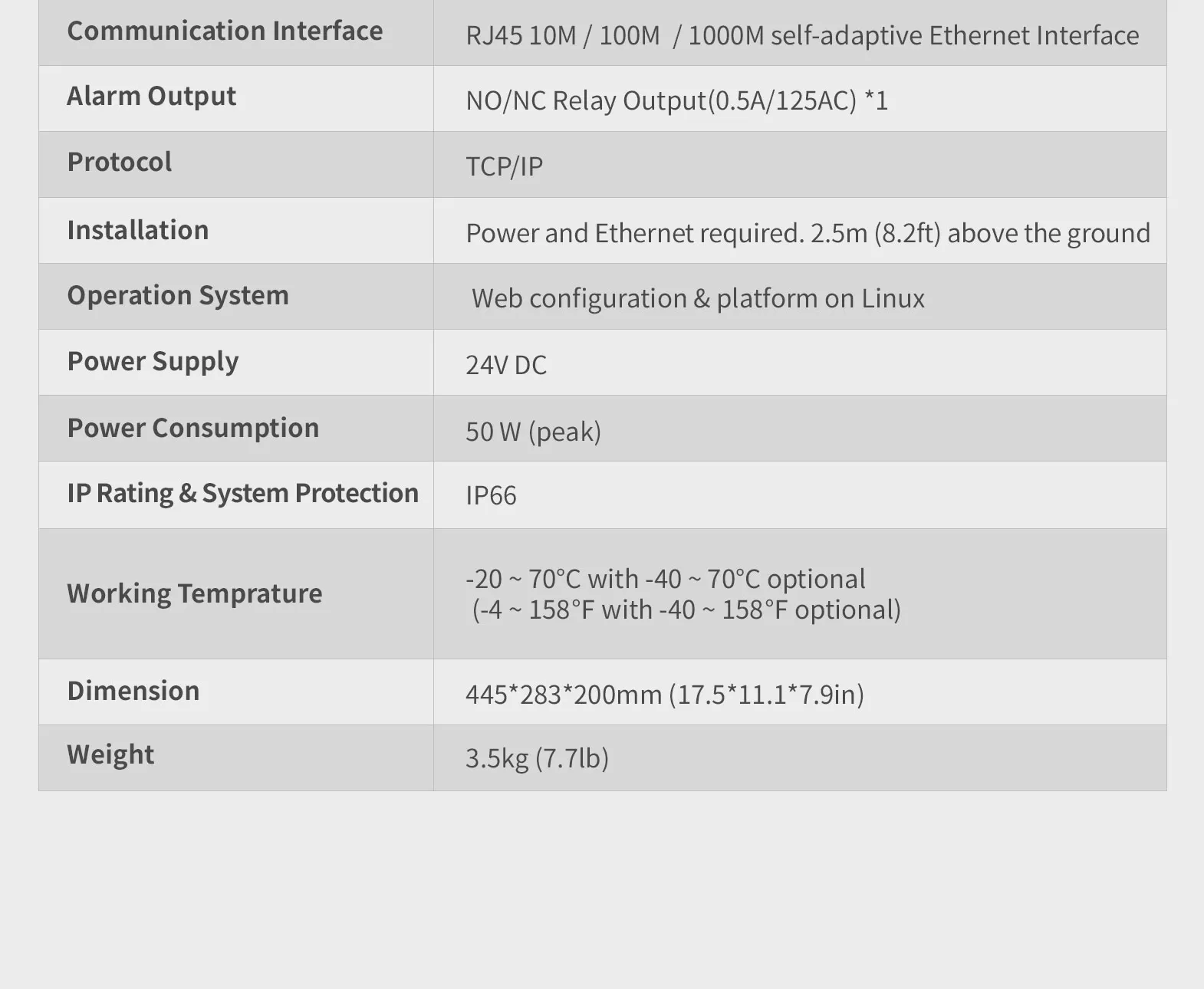

Communication Interface:RJ45 10M / 100M / 1000M self-adaptive Ethernet Interface

Alarm Output:NO/NC Relay Output(0.5A/125AC) *1

Protocol:TCP/IP

Installation:Power and Ethernet required. 2.5m (8.2ft) above the ground

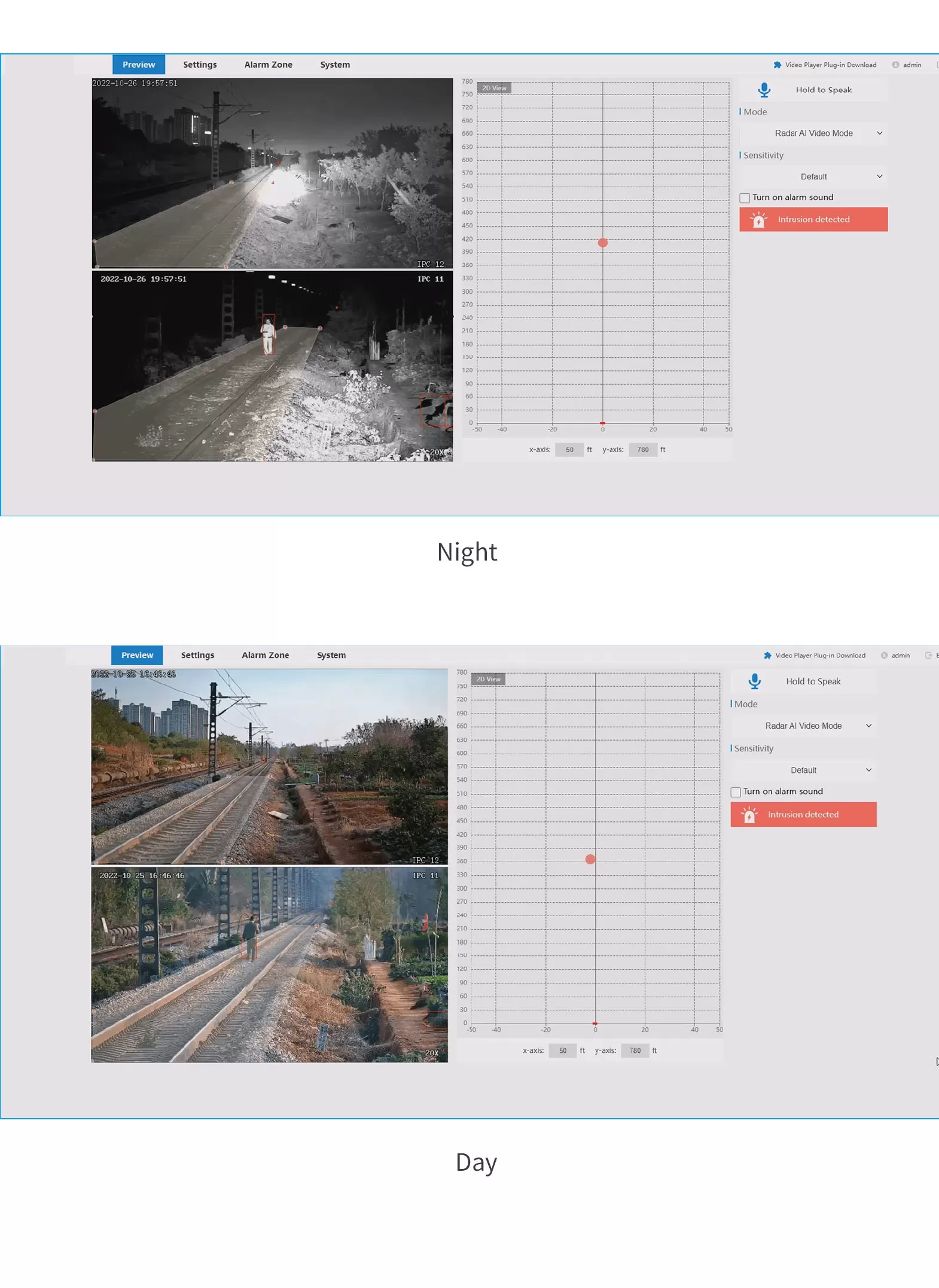

Operation System:Web configuration & platform on Linux

Power Supply:24V DC

Power Consumption:50 W (peak)

IP Rating & System Protection:IP66

Working Temprature:-20 ~ 70°C with -40 ~ 70°C optional
 (-4 ~ 158℉ with -40 ~ 158℉ optional)

Dimension:445*283*200mm (17.5*11.1*7.9in)

Weight:3.5kg (7.7lb)

  • Product Details



The AXPL200/AXPL100 are multi-sensor intelligent perimeter surveillance terminals. That adopt state-of-the-art multi-sensor technology and multi-stage strategy decision making hierarchy to maximize situational awareness. The terminal comes with built-in radar and cameras, plus smart target recognition and classification, all inside a single unit. The terminal is reliable with highly accurate detection of intrusions and very low false alarm rate. By adopting a software framework based on machine learning, it is able to rapidly adapt to the various environmental changes of the installation site, ensuring system accuracy and optimal user experience. It can be used for perimeter security of parking lots, data centers, commerical buildings, and important infrastructures in a variety of settings.
