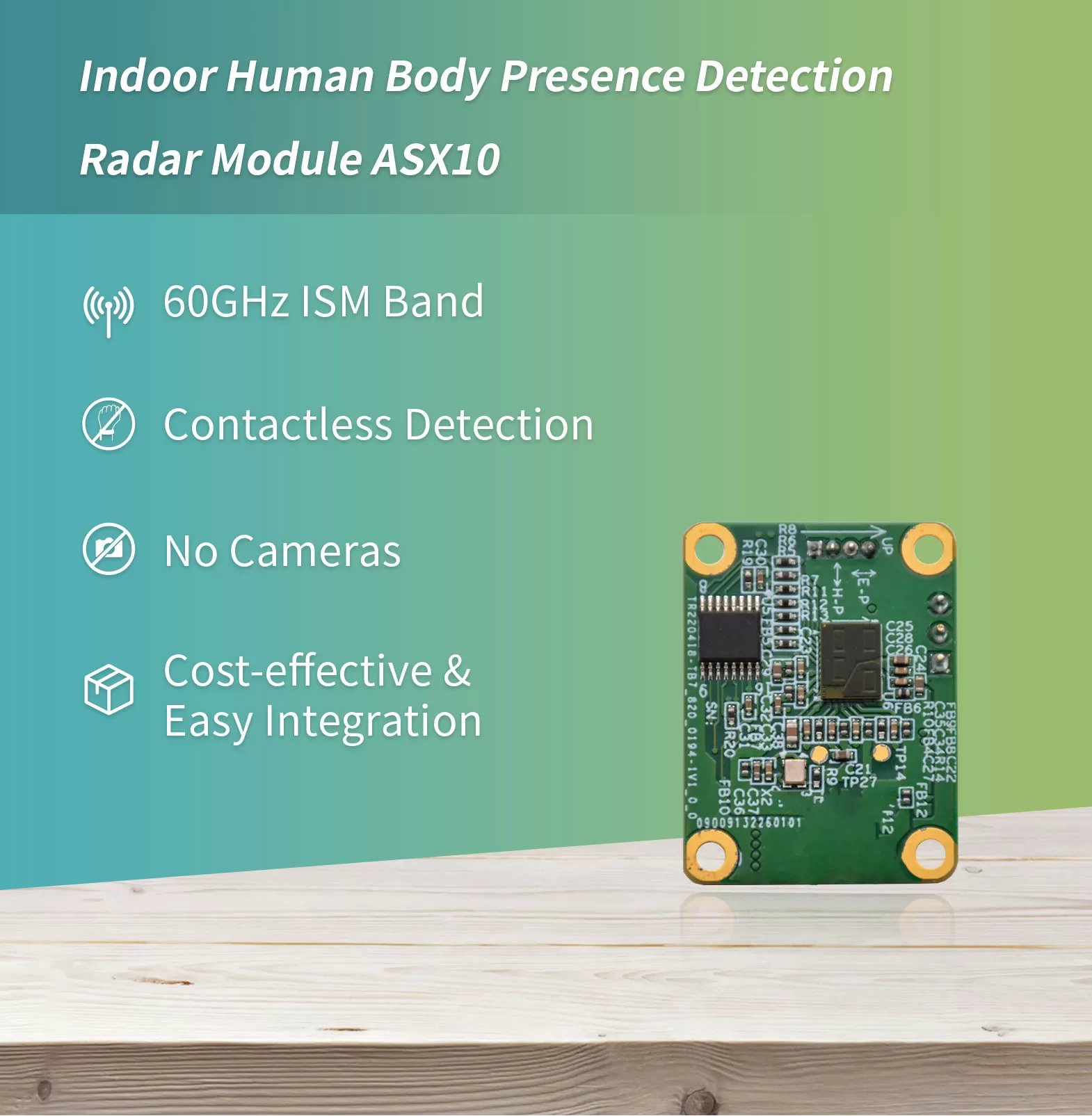

Axend’s ASX02, ASX08 and ASX10 series are mmWave radar modules that are ideal for applications such as indoor human body presence detection and tracking. Featured by designs of FMCW modulation with high complexity and performance, along with advanced radar algorithm accompanied by deep machine learning, this line of radar modules provides excel user experiences in applications such as smart toilets, smart lighting, smart screen control, and so on. It provides a budget replacement of current technologies such as PIR and doppler radars.

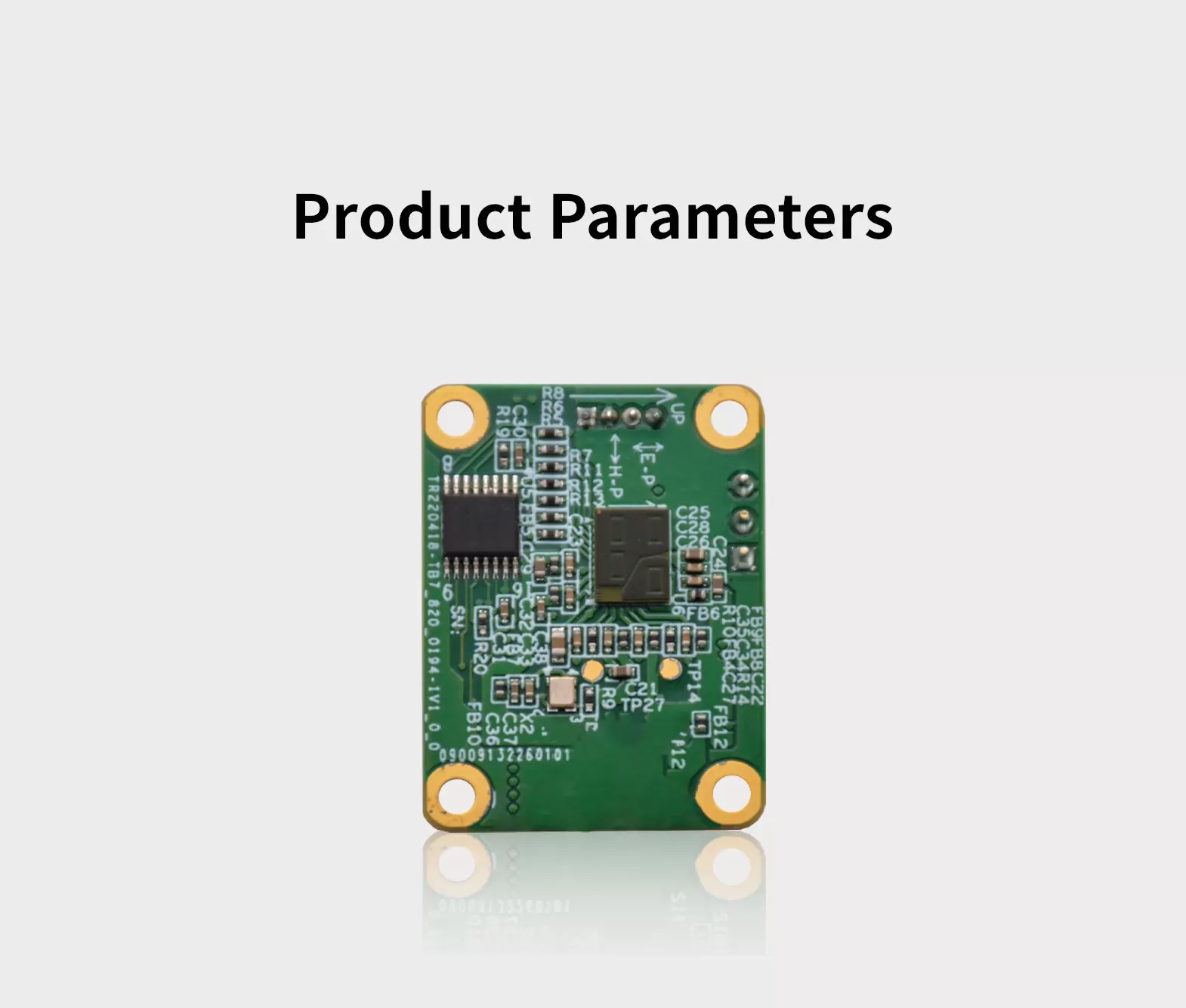

|Functions||Presence Detection, Motion & Motionless, Target Position & Trajectory,Breath, Heart-beat|
|Transceiver Channel||1TX/ 3RX|
|Powered by||DC 5V/ 1A|
|Detection Distance||3.0m (10ft) (target motionless)|
6.0m (19.7ft) (minor movement)
7m (23ft) (tracking)
|Dimensions (L*W)||23*32mm (0.9*1.3in)|
